Application:
Advantage:The most advanced terry air jet loom on the market. High output, low energy consumption, stable machine operation and high quality.

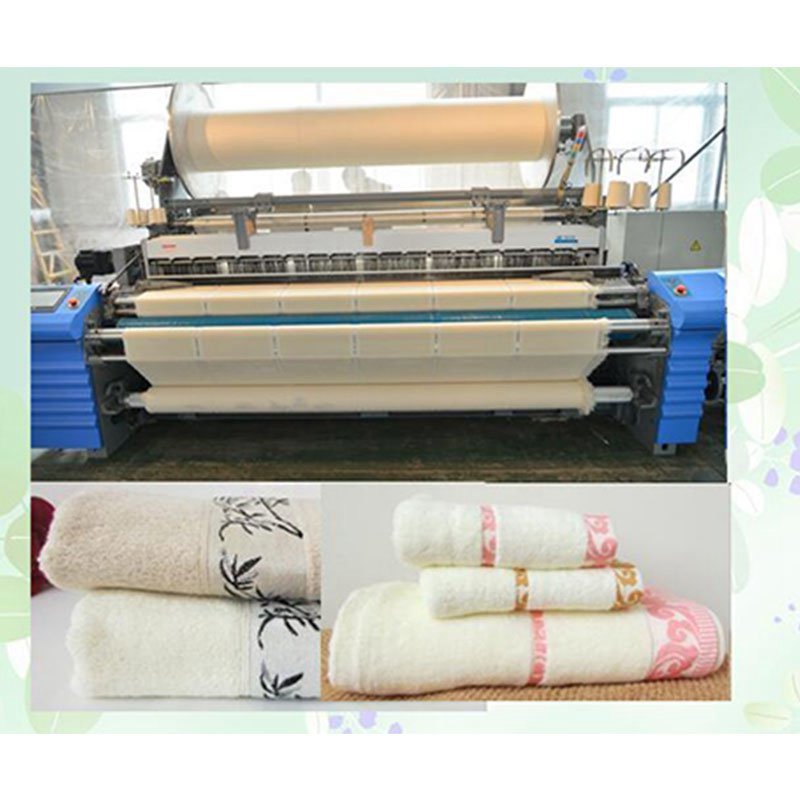

Weaving scope:Towels, bath towels, hotel supplies. jacquard fabric
Advantage:The most advanced terry air jet loom on the market. High output, low energy consumption, stable machine operation and high quality.
Weaving scope:Towels, bath towels, hotel supplies. jacquard fabric
Technical parameter
Item
| Specification | Remark | |
Reed width | Reed width(cm) | 210 230 280 300 320 340 360 | |
Useful reed width | Reduce 0-60cm (150-230cm) Reduce 0-80cm (280cm above) | ||
Fabric | Material & weave | Cotton Filament Rayon Towels, Bath towels, Jacquard fabrics | |
Power | Main power | 4.5kw (dobby shedding ） 5.5kw (jacquard shedding） | Power consumption is depend on reed width and shedding method. |
Speed | Motor-belt pulley
| RPM 550 600 dobby shedding | |
RPM 450 550 jacquard shedding | |||
Weft insertion
| Weft selection | 2 4 6 8 | |
Magnetic valve | SMC Japan | Twin nozzle per valve | |
Feeder
| Vibration model | ||
Without WPS WPS | |||
2 4 6 8 | |||
Nozzle | Energy-saving nozzle | ||
Shedding
| Shedding method
| Dobby shedding (Changfang Niupai Staubli) Jacquard shedding (Staubli brand or Songhe) | |
Jacquard hook number | 1344 2688 5120 6400 | depends on customer's fabric | |
Let off device
| Continuous positive let off
| Positive easing Double beam | |
Flange diameter | Ø800 Ø1000 | ||
Take up device
| Take up | Electronic take up (ETU) | |
Max cloth roll diameter | Ø600mm(cam dobby jacquard) Ø1200mm(jumb batching motion） | ||
Weft density | Take 40s cotton yarn for example | ||
ETU 25-300picks/inch | |||
Beating
|
Crank beating system | Four-bar beating-up motion(below 230cm) Six-bar-beating-up motion (above 280cm) | |
Selvage | Leno gear selvage | ||
edge | Tuck-in device or leno selvage | ||
Temple
| Top mounted Bottom mounted Adjustable top mounted | ||
Ring number 2 4 15 20 30 42 others | |||
Rubber type | |||
Cutter | Mechanical cutter | ||
Lubrication | Manual oil supply Automatic oil supply | ||
Stop motion
| Weft stop | Reflective weft feeler One heads system Two head system | |
Warp stop | Electric 6-row contact bar system | ||
Control system | Inovance brand Made-in-China | With NAVI-borad(data setting, automatic control,monitoring,self-diagnosis function, WPS interface) | |
Automation | Pick ending | APF automatic pick finder | |
Accessory
| Heald wire plastic or s.s | 10000pcs | |
Warp beam | 1:1.5 | ||
Cloth roller | 1:1.5 | ||
Reed energy-saving type | 1:1 | ||
Dropper close or open | 10000pcs | ||
Frequency conversion cabinet(power box)-inside of electric box | 1:1 | ||
