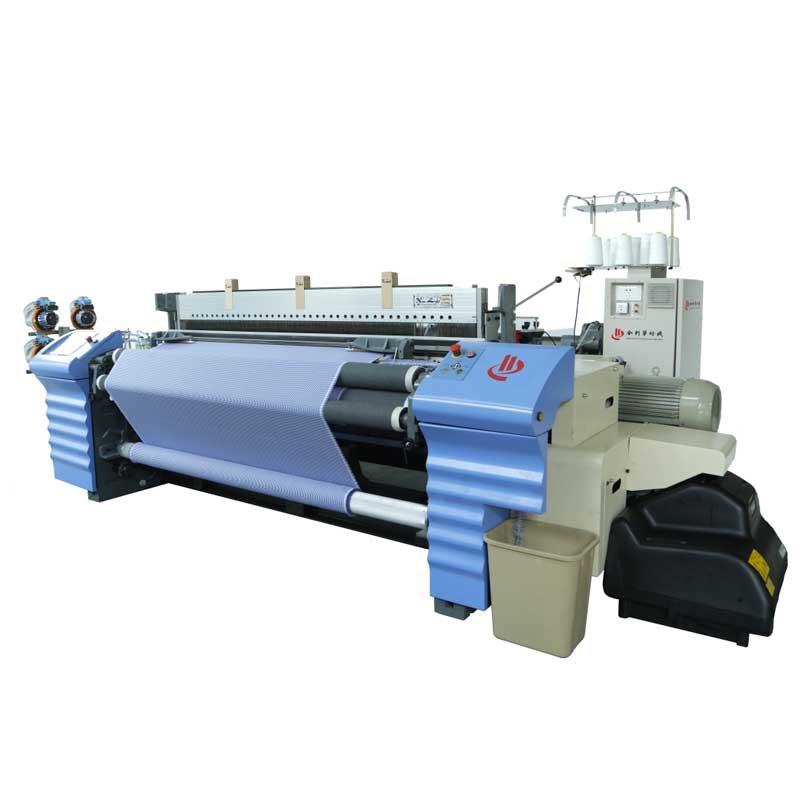

Product Detiles

●  Technical parameter



 Item



 Specification

Remark



Reed width



Reed width(cm)

150. 170. 190. 210. 230. 280. 340. 360




Useful reed width

Reduce 0-60cm (150-230cm)

Reduce 0-80cm (280cm above)




Fabric



Material & weave

 Cotton   Filament  Rayon

 Plain   Twill  Satin  jacquard








Power









Main power



  2.8kw ( crank/ plain shedding)(≤230)

  3.7kw(>230)

  3.0kw ( cam shedding )(≤230)

  4.5kw(>230)

  4.5kw (dobby shedding)(≤230)

  5.5kw(>230)

  5.5-7.5kw (jacquard shedding)

According to the number of jacquard frames equipped

According to customer needs, match the most suitable motor











Speed















Motor-belt pulley



RPM  550   600   650   750

   850   1000 (below 230 cm, )

The speed depends on the width of the machine, the fabric produced by the customer, the quality of the yarn, the temperature and humidity of the workshop, etc.

RPM  450   550   650   750

(280cm)

RPM  400   450   550

(340,360cm)

RPM  350   380   410

(340, 360cm twin beam and double beam)







Weft insertion



Weft selection



1  2  4  6  8

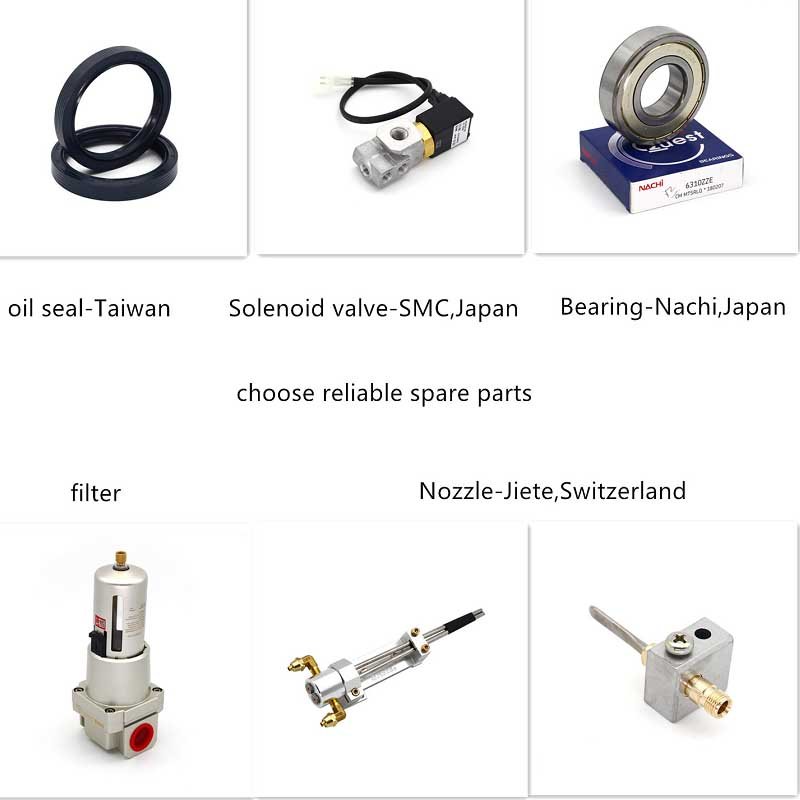

Magnetic valve

SMC Japan




Feeder



Vibration model


Without WPS

WPS


1  2  4  6  8




Nozzle

Energy-saving nozzle










Shedding



Shedding method



 Crank plain shedding

 Positive cam shedding

( Bintian     niupai   Staubli)

 Dobby shedding

( Changfang   niupai   Staubli)

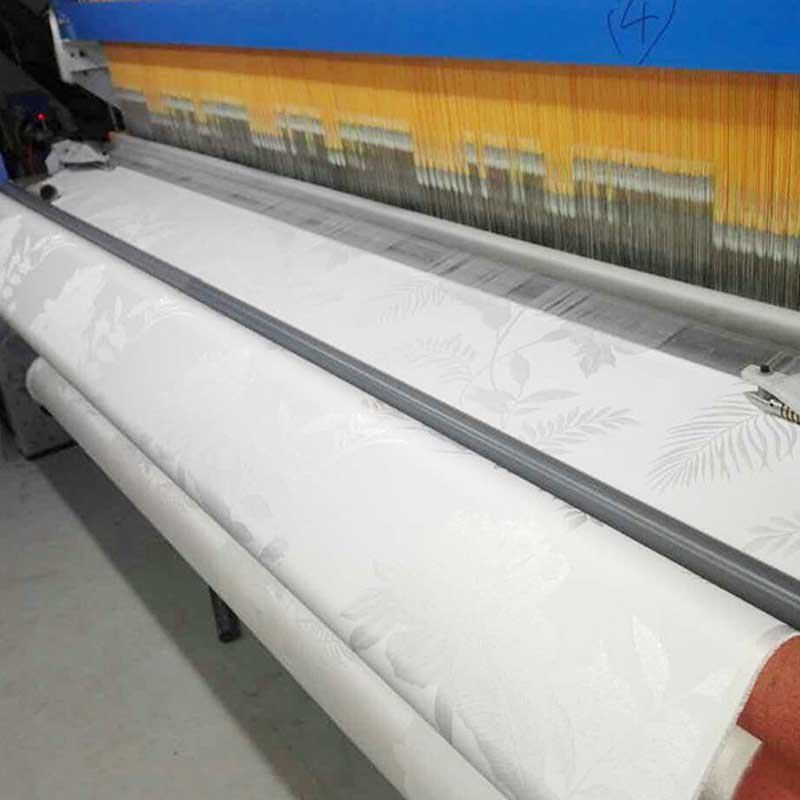

 Jacquard shedding

(Songhe  Staubli)


Heald frame



1  2  4   6   7   8   10   16

Brand :New light Japan


Cam plate type

1/1  1/2  2/2   1/3   1/4

 others






Let off device



Continuous positive let off



Positive easing

Single beam

Double beam


Flange diameter

Ø800  Ø1000








Take up device



Take up

Electronic take up (ETU)


Max cloth roll diameter



Ø600mm(cam dobby jacquard)

Ø520mm(crank)

Ø1200mm(jumb batching motion)


Weft density

Take 40s cotton yarn for example


ETU 25-300picks/inch




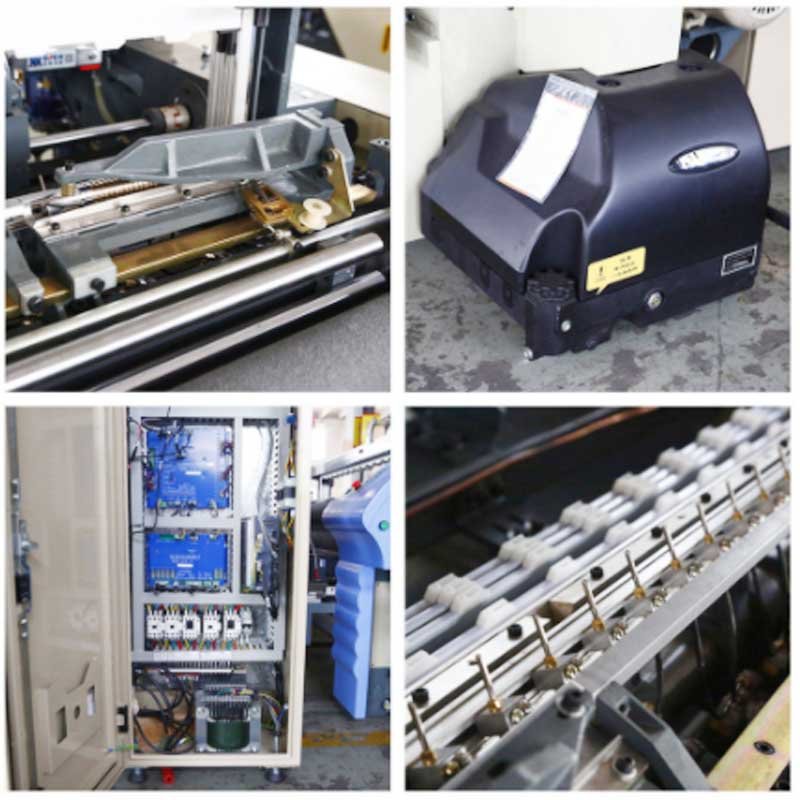

Beating





Crank beating system

Four-bar beating -up motion (below 230cm)

Six-bar-beating-up motion(above 280cm)


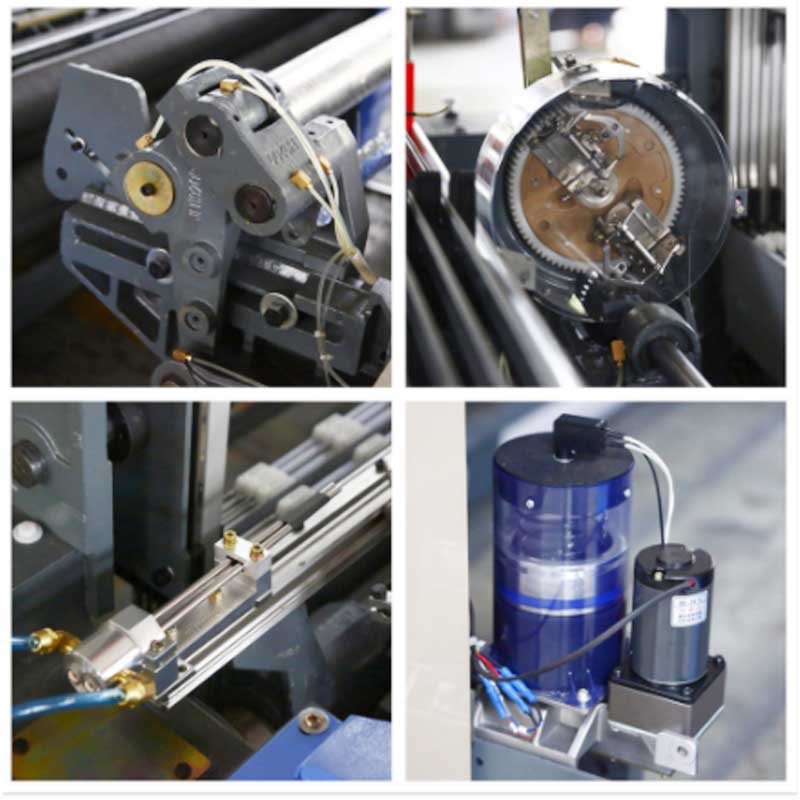

Selvage


Leno gear selvage

Planetary edging


edge


Tuck-in device  or  leno selvage




Temple




Top mounted


Ring number  2  4  15  20  30  42   others


Rubber type


Cutter


Mechanical cutter


Lubrication


Manual oil supply

Automatic oil supply




Stop motion



Weft stop

Reflective weft feeler

 One heads system

 Two head system


Warp stop

Electric 6-row contact bar system


Control system

BaiNa brand

Made-in-China

With BaiNa-borad(data setting, automatic control,monitoring,self-diagnosis function, WPS interface)


Automation

Pick ending

APF automatic pick finder








Accessory




Heald wire    plastic  or  s.s

10000pcs

Warp beam

1:2

Cloth roller

1:2

Reed  energy-saving type

1:1

Dropper  close or open

10000pcs

Frequency conversion cabinet(power box)-inside of electric box

1:1
